4K Ultra HD Display
Crystal-clear visuals with smooth 60Hz performance
AI Technology
Smooth, lag-free performance
System Version
Upgradble to Android 16
Pickup currently not available

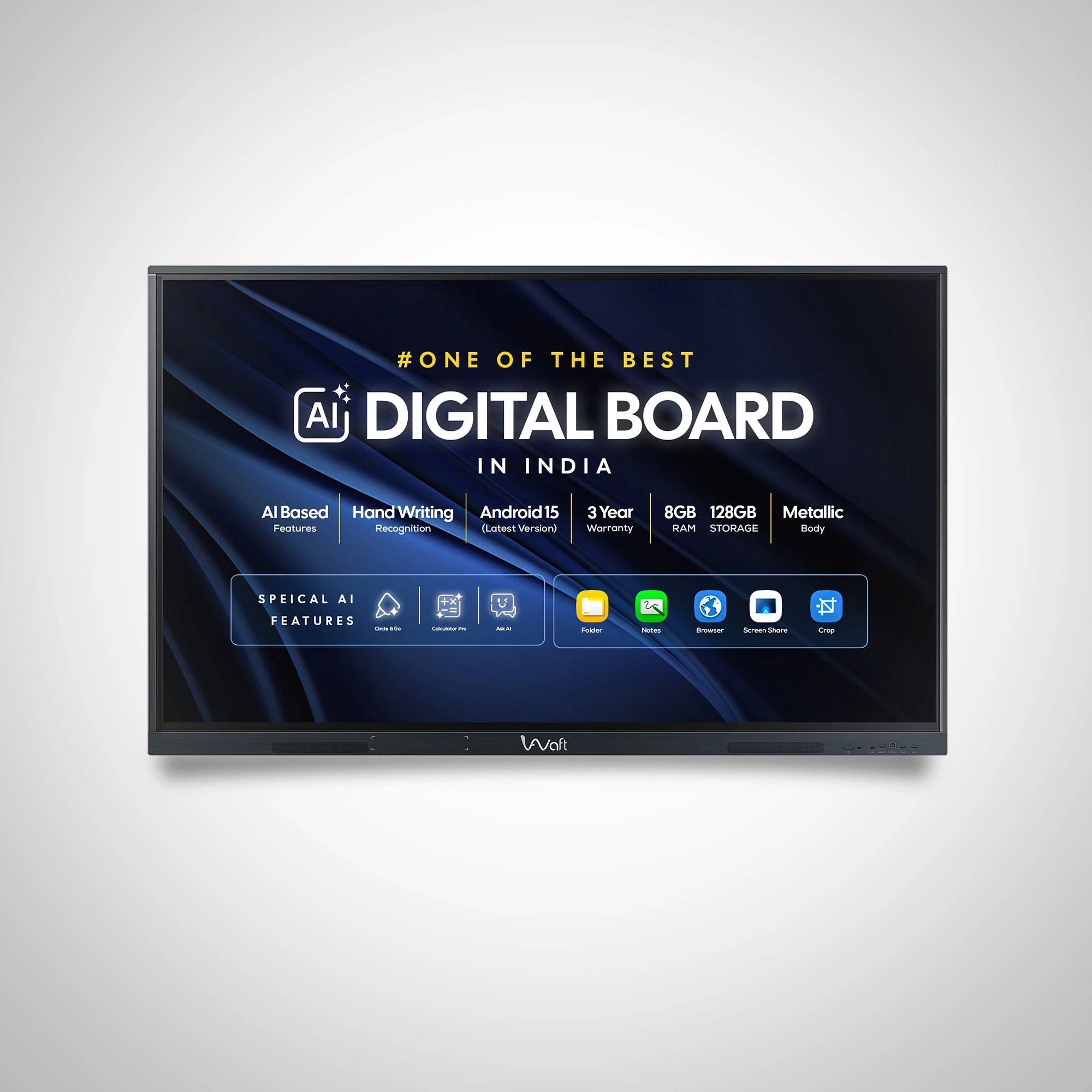

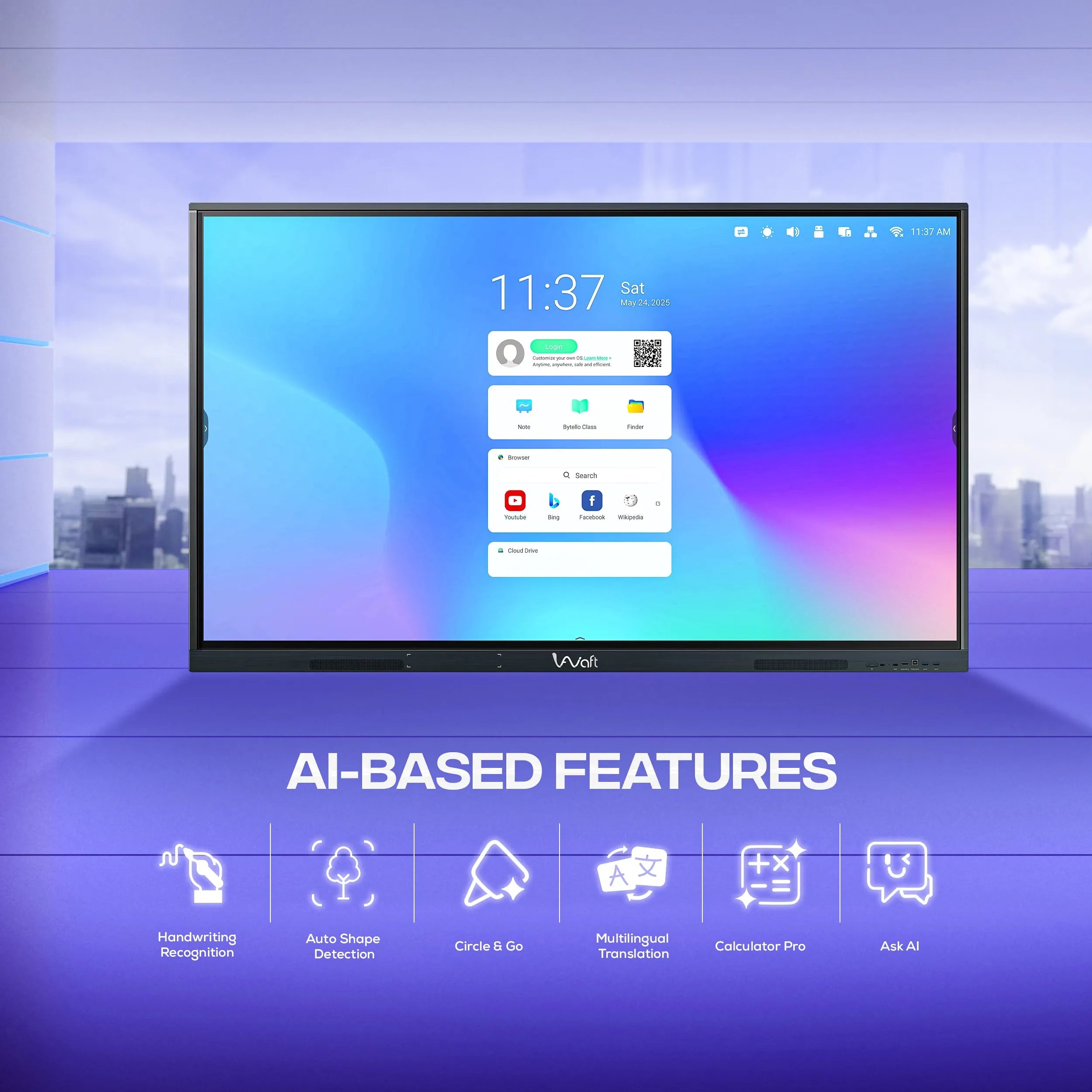

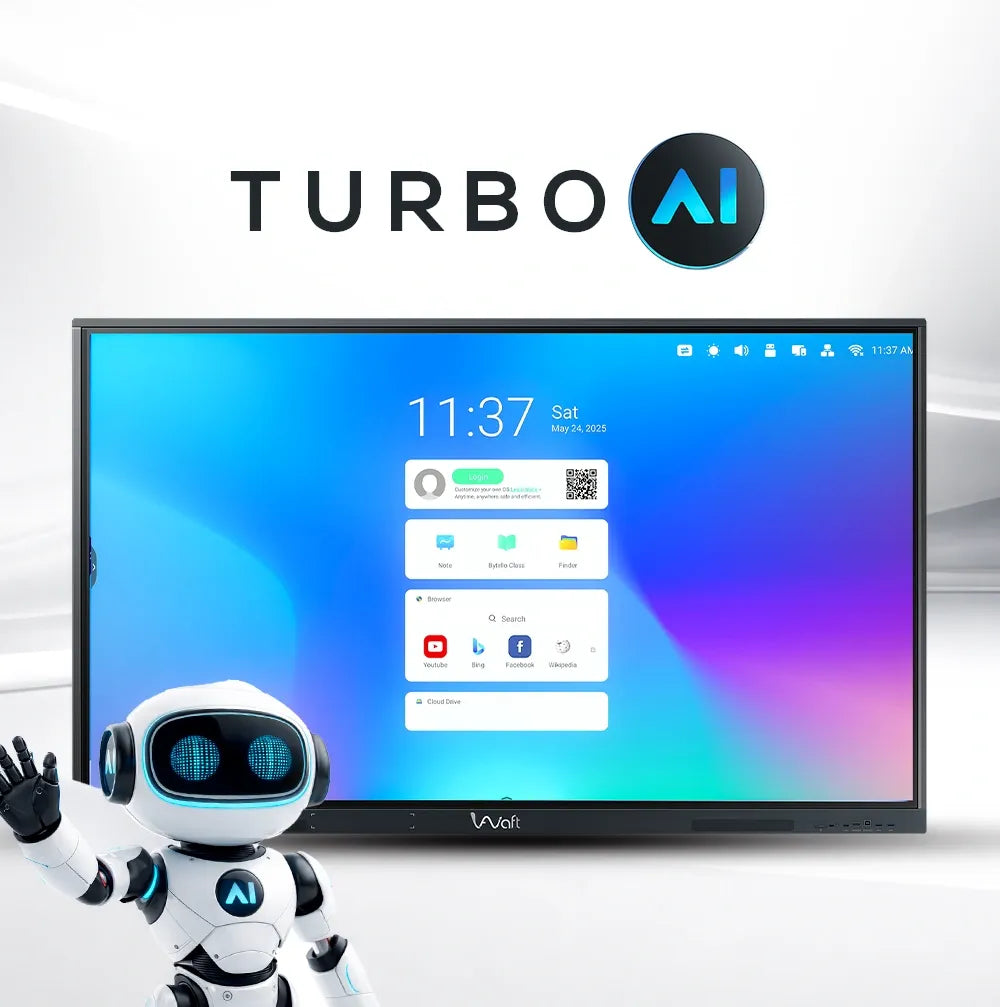

AIWaft Turbo AI Interactive Flat Panel is a next-generation 4K UHD smart board designed for modern classrooms, training centers, and professional collaboration spaces. Powered by an upgradable Android 16 system with 8GB RAM and 128GB storage, it ensures smooth performance and intelligent functionality.

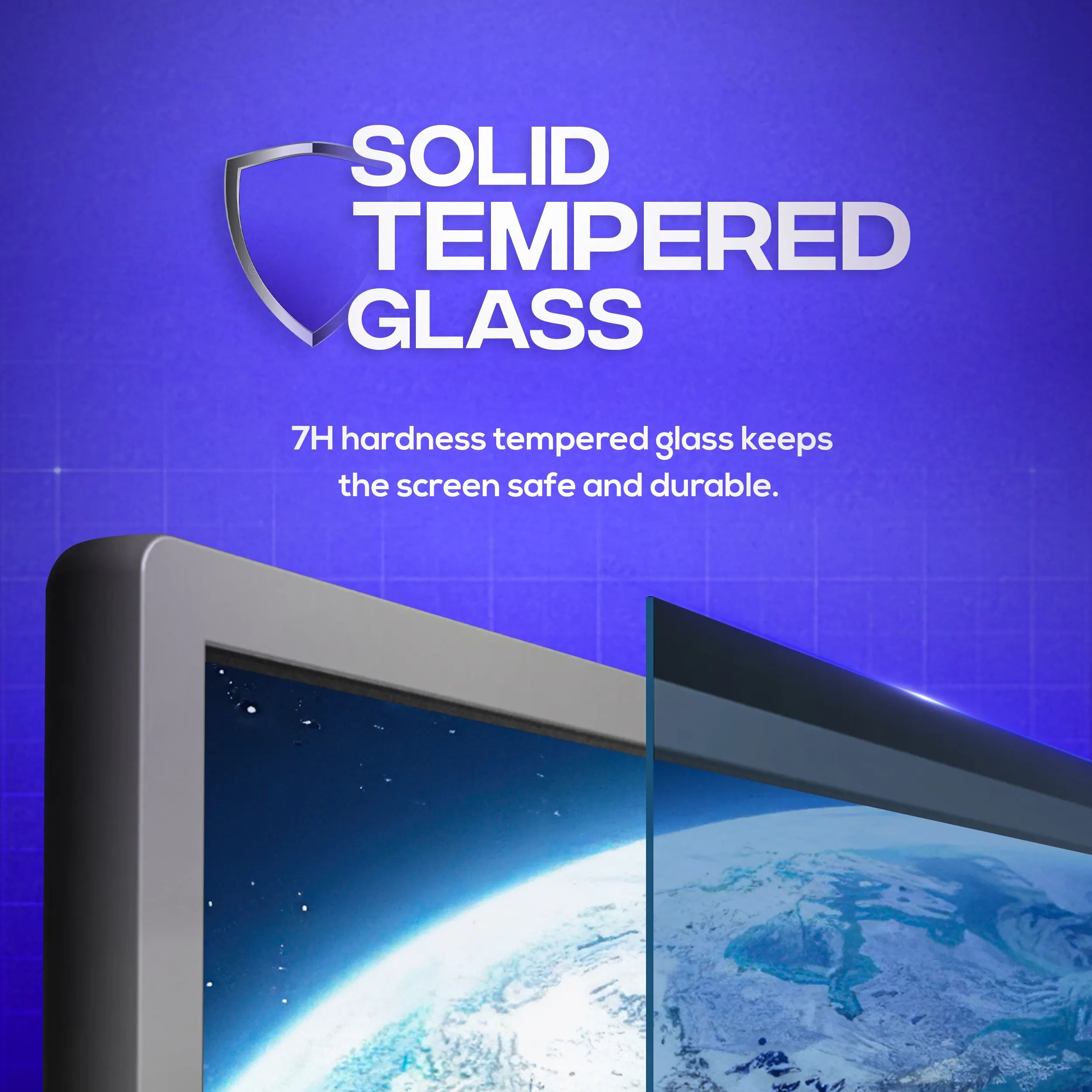

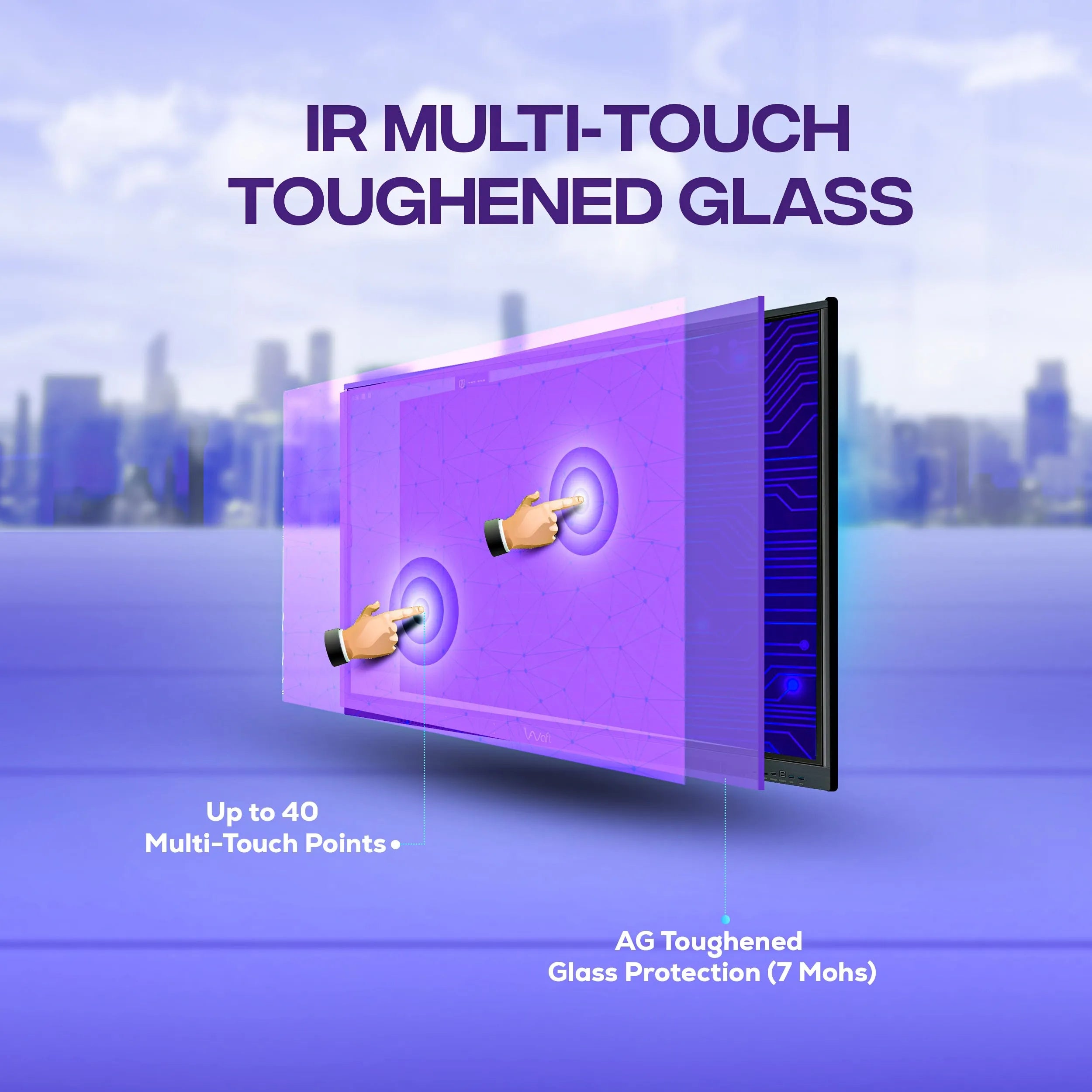

Featuring Zero Bonding Technology, 4K Ultra HD resolution (3840×2160), and up to 50-point infrared multi-touch support, it delivers ultra-clear visuals and highly responsive writing experience. The AG toughened 7H glass provides durability and protection for long-term use.

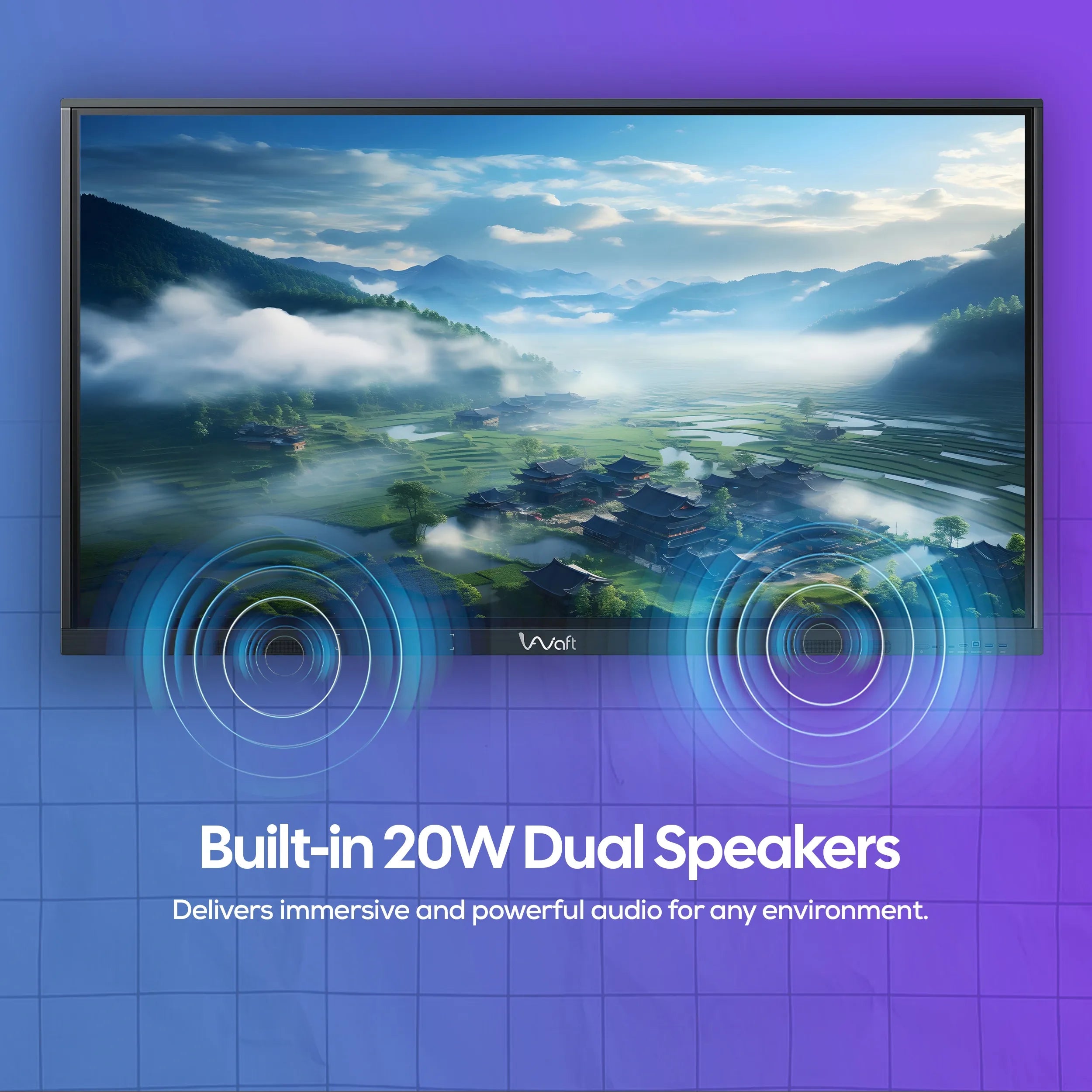

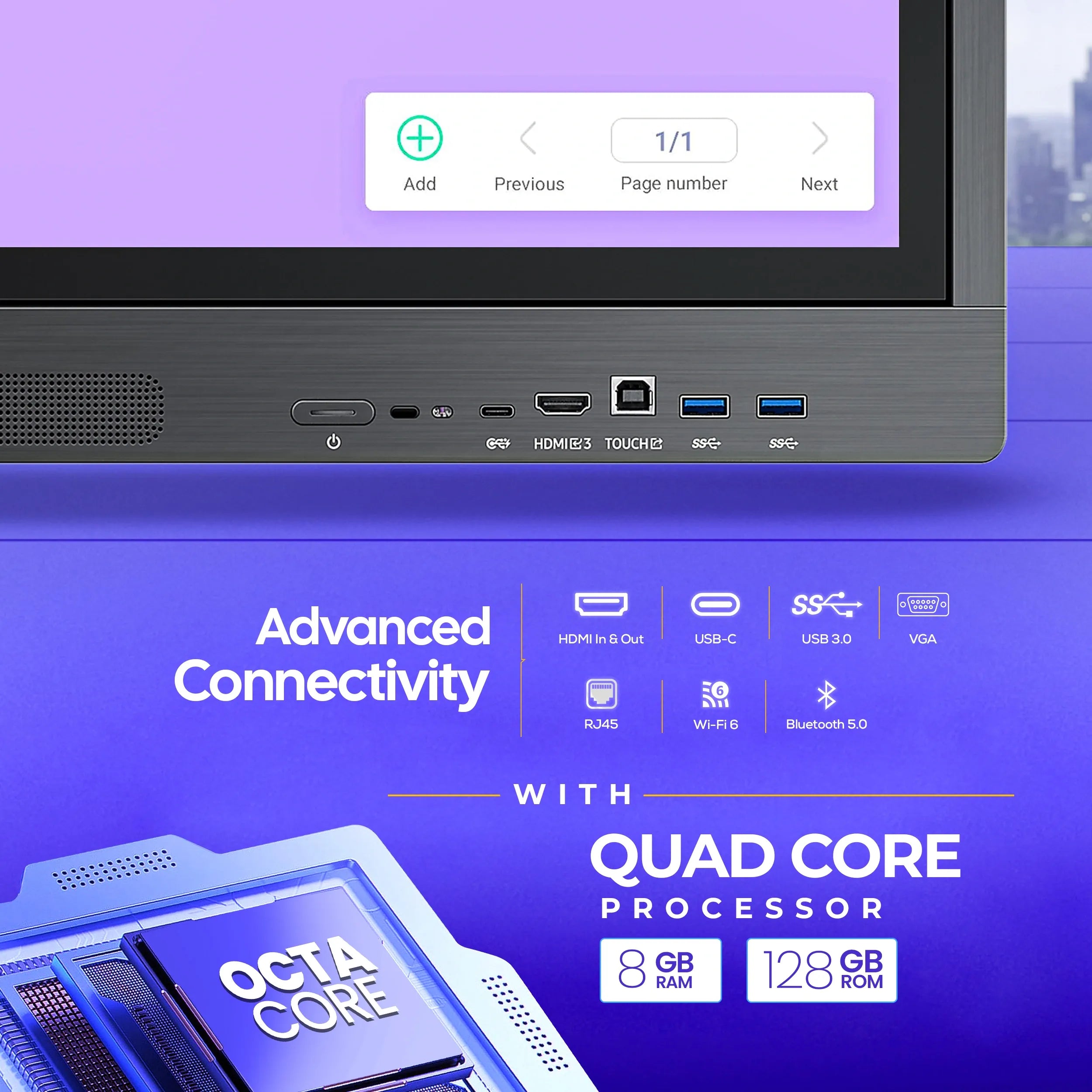

With built-in dual 16W speakers, 8-array microphones for crystal-clear conferencing, and advanced connectivity options including HDMI, USB 3.0, USB-C, RJ45, Bluetooth 5.2, and Wi-Fi 6, this panel supports seamless integration with Windows, Mac, Android, and Linux systems.

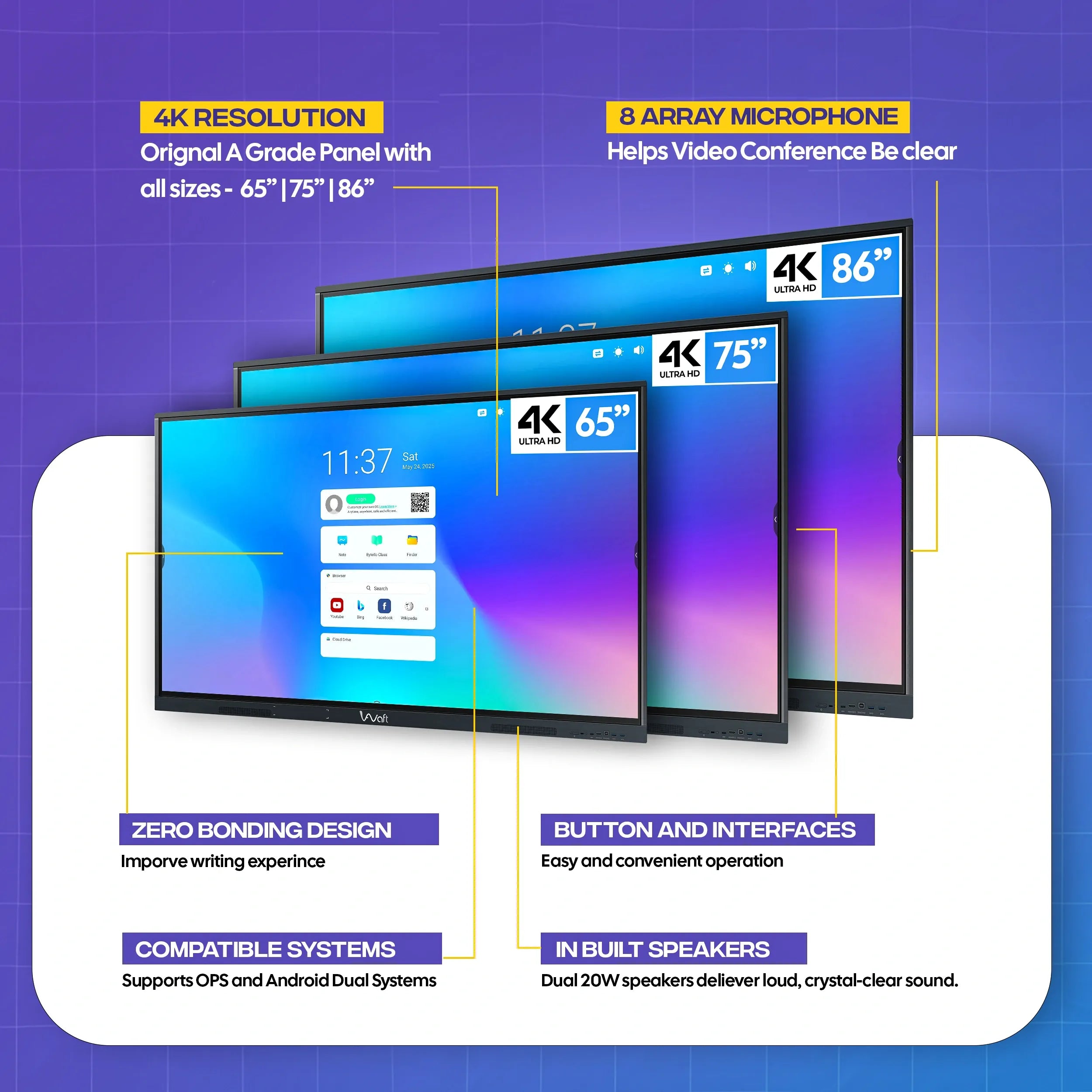

Available in 65-inch, 75-inch, and 86-inch sizes, AIWaft Turbo AI is perfect for smart classrooms, hybrid teaching, corporate meetings, and digital training environments.
| Contrast Ratio | 5500:1 |
|---|---|
| Viewing Angle | 178°(H/V) |
| Back Light Unit | DLED |
| Brightness with glass(min) | 300cd/m² |
| Brightness with glass(typ) | 350cd/m² |
| Operation Time | 7 days×16 hours |
| Life Time | ≥50000 Hours |
| System Version | Upgradble to Android 16 |
|---|---|
| RAM+ROM | 8G+128G |
| CPU | Core Cortex-A73 |
| GPU | Mali G52 MC1 |
| Sensing Type | Infrared recognition |
|---|---|
| Touch Tool | Passive infrared pen |
| Accuracy | ±1.5mm |
| Touch Point | 50 points touch |
| Minimum object size | 3mm |
| Writing Height | ≤2mm |
| Interpolation Resolution | 32768(W)×32768(D) |
| Response Time | ≤10ms |
| System | Windows10/Windows8/Windows7/WindowsXP/Android/Linux/Mac OS X/Chrome |
| Sound Channel | 2.0 |
|---|---|
| Speaker Power | 2×16W |
| Sound pressure level | 84dB |
| Version | 5.2 |
|---|---|
| Working Frequency | 2.4GHz |
| Working Distance | 0~10m |
| Version | 802.11 a/b/g/n/ac/ax |
|---|---|
| Working Frequency | 2.4GHz/5GHz |
| Working Distance | 0~10m |
| Power Requirements | 100-240V~50/60Hz 3.5A |
|---|---|
| Typical Power*[1] | 215W (Maximum backlight) |
| Max Power*[2]（W/OPS) | 330W |
| HDMI IN | 3 Up to 4K@60Hz, |
|---|---|
| USB 2.0 | 1 For system upgrades |
| USB 3.0 | 3 Front*2, Rear*1，All USB3.0canautoswitch to current channel |
| USB Type-C IN | 1 Supports USB functionality only, doesnot support fast charging andscreenmirroring |
| TOUCH 2.0 | 2 2.0 |
| AUDIO IN | 1 3.5mm Jack |
| AUDIO OUT | 1 3.5mm Jack |
| SPDIF | 1 PCM output format |
| RS232 | 1 Baud rate 9600 |
| RJ45 IN | 1 10M/100M bps |
| Dimension L×H×D | 1712×1022×99mm |
|---|---|
| Dimension (package) L×W×H | 1863×225×1155mm |
| Thickness of machine and wall mount | 126mm(WIB9060H) |
| Wall-hanging Screw Spec | M8×25mm |
| VESA | 800×400mm |
| Net Weight | 42.15kg |
| Gross Weight | 56.55kg |
| Power Cord | ×1 |
|---|---|
| Writing Pen | ×2 |
| Rod Antenna | ×2 |
| Operation Temperature | 0℃ - 40℃ |
|---|---|
| Operation Humidity | 10% - 90%RH |
| Storage Temperature | -20℃- 60℃ |
| Storage Humidity | 10% - 90%RH |
| Altitude | Below 5000 meters |
| PC Module | OPS72A |
|---|
4K Ultra HD Display
Crystal-clear visuals with smooth 60Hz performance
AI Technology
Smooth, lag-free performance
System Version
Upgradble to Android 16

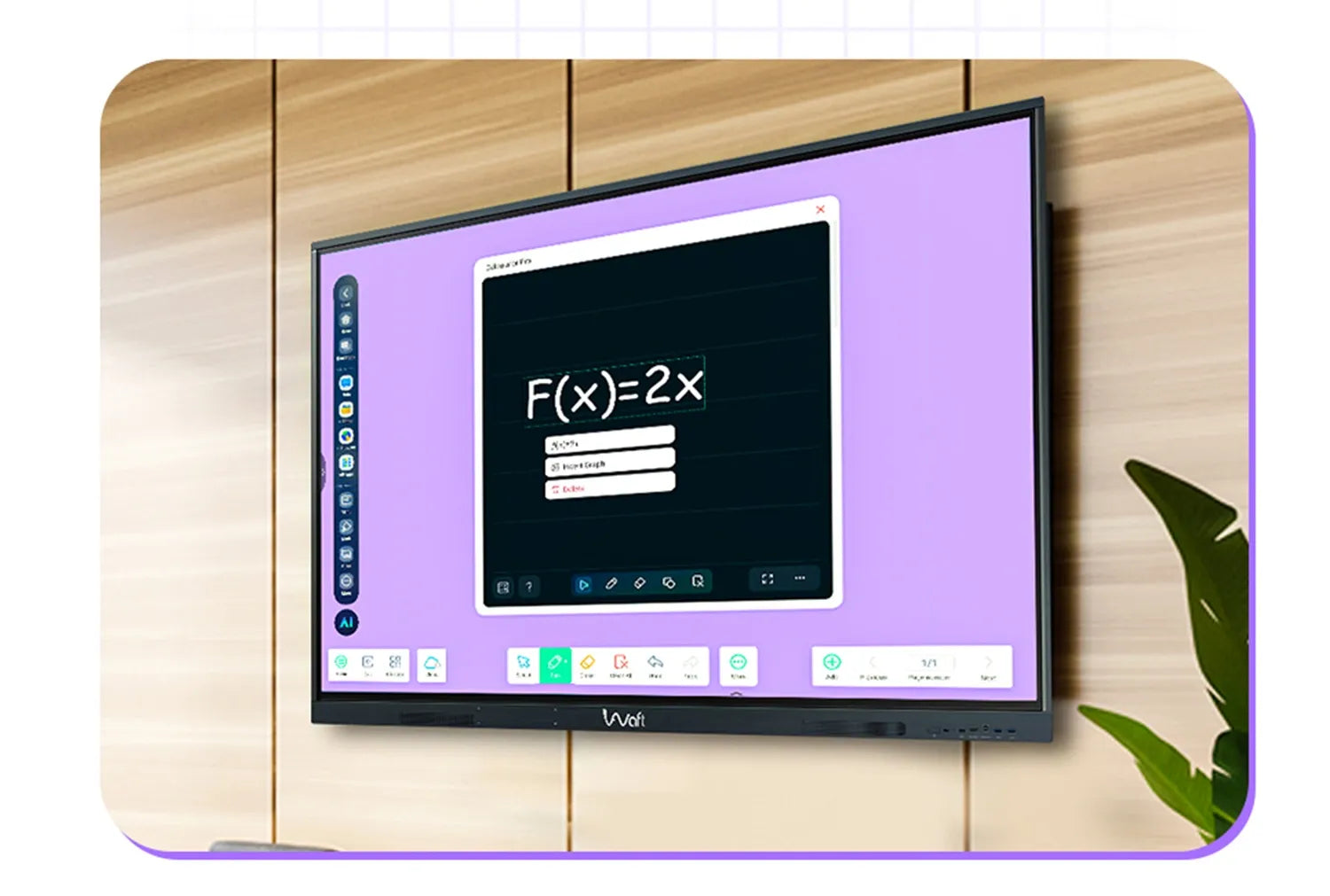

Write "2 + 2" and draw a line-get instant answers. From simple sums to complex equations with graphs Turbo Al Calculator Pro is your smart, visual math assistant. Solve, visualize, and explore-all in one seamless experience.

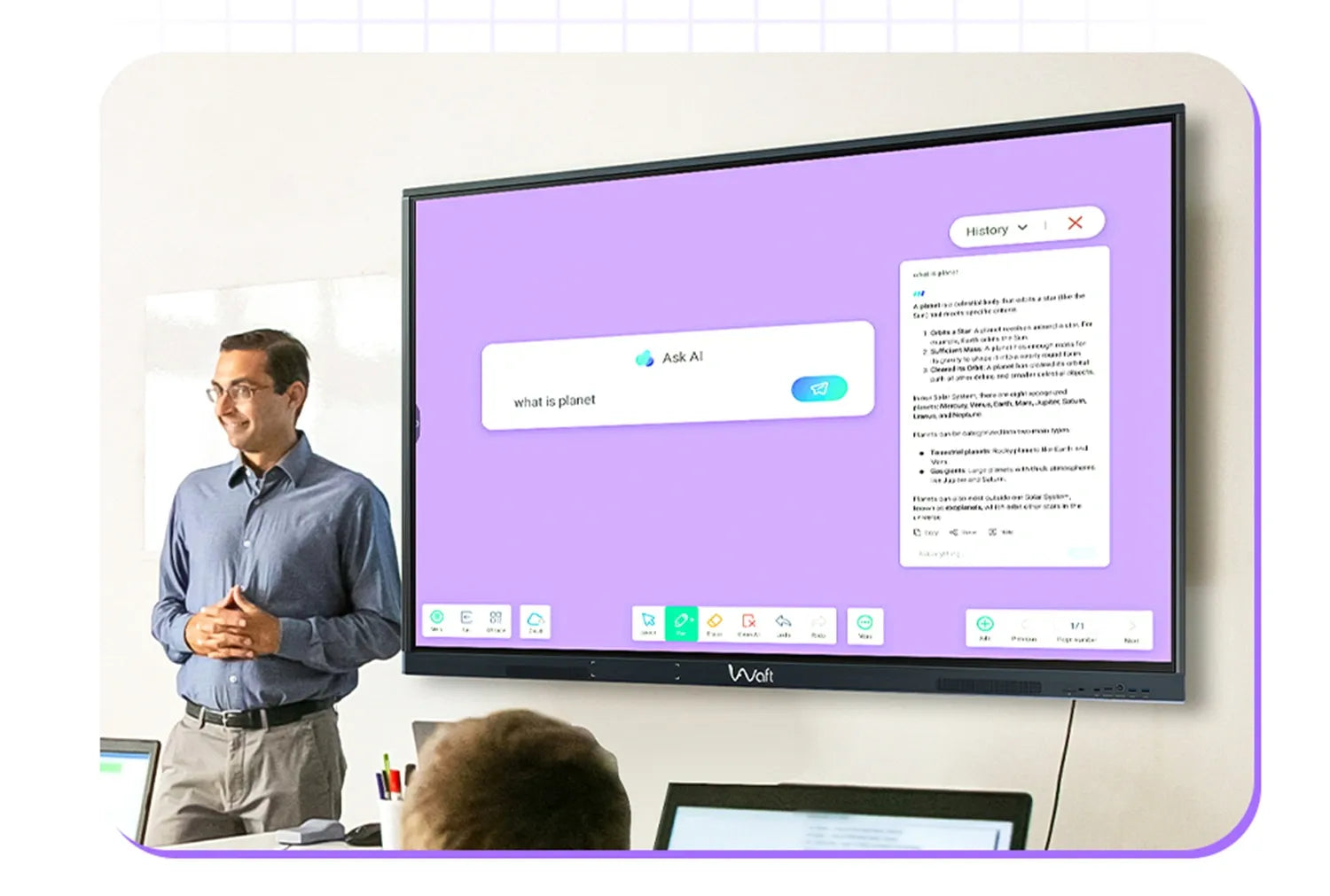

Type any question-concepts, how-to guides, or facts-and Turbo Al gives instant answers, videos, and insights in one place. No more switching tabs. One click, one solution. Smarter learning starts with a single question.

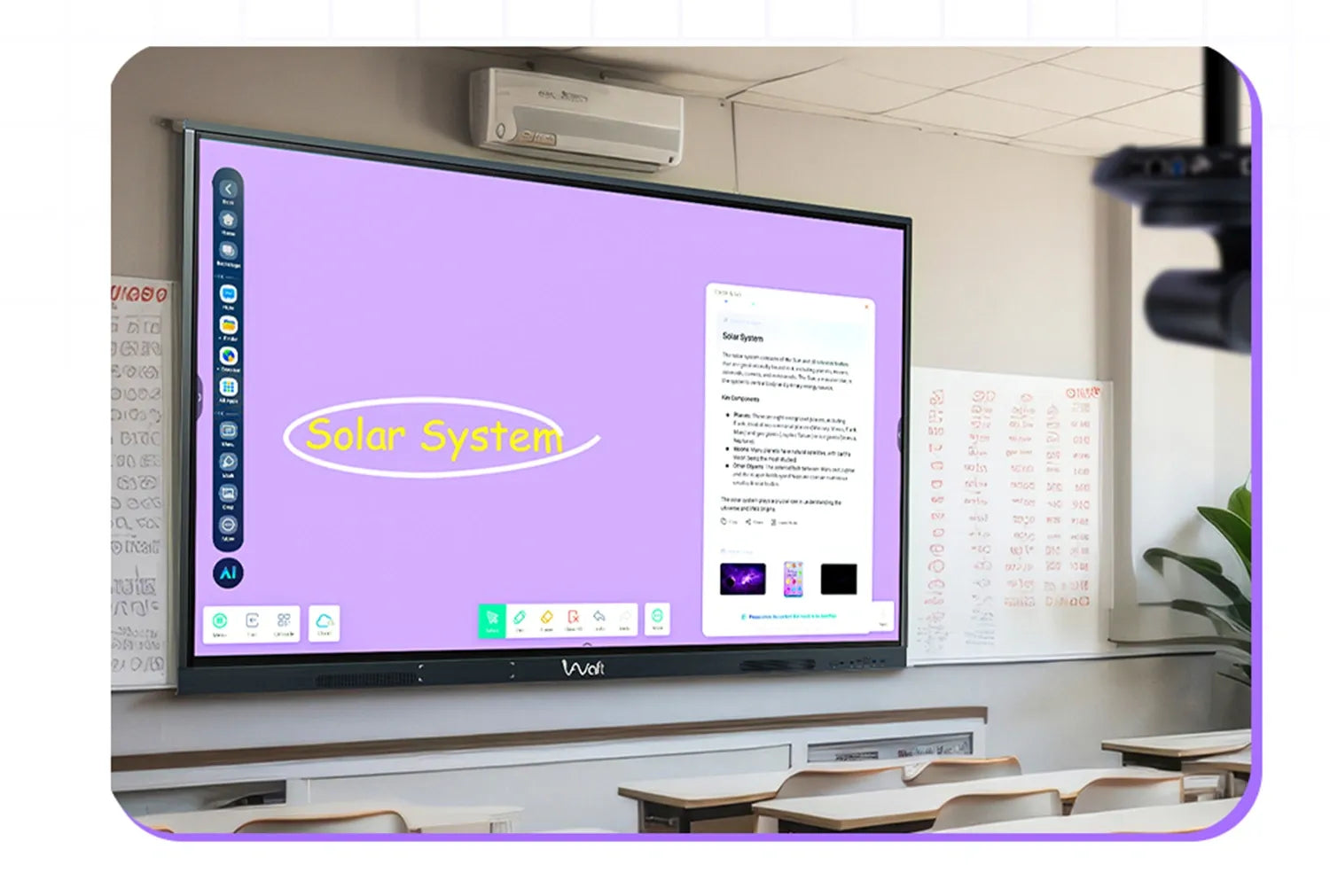

Spotted something interesting? Just draw a circle-on images, text, or pages-and Turbo Al instantly gives you details. From products to places, info is just a gesture away. Explore smarter with Al at your fingertips.
