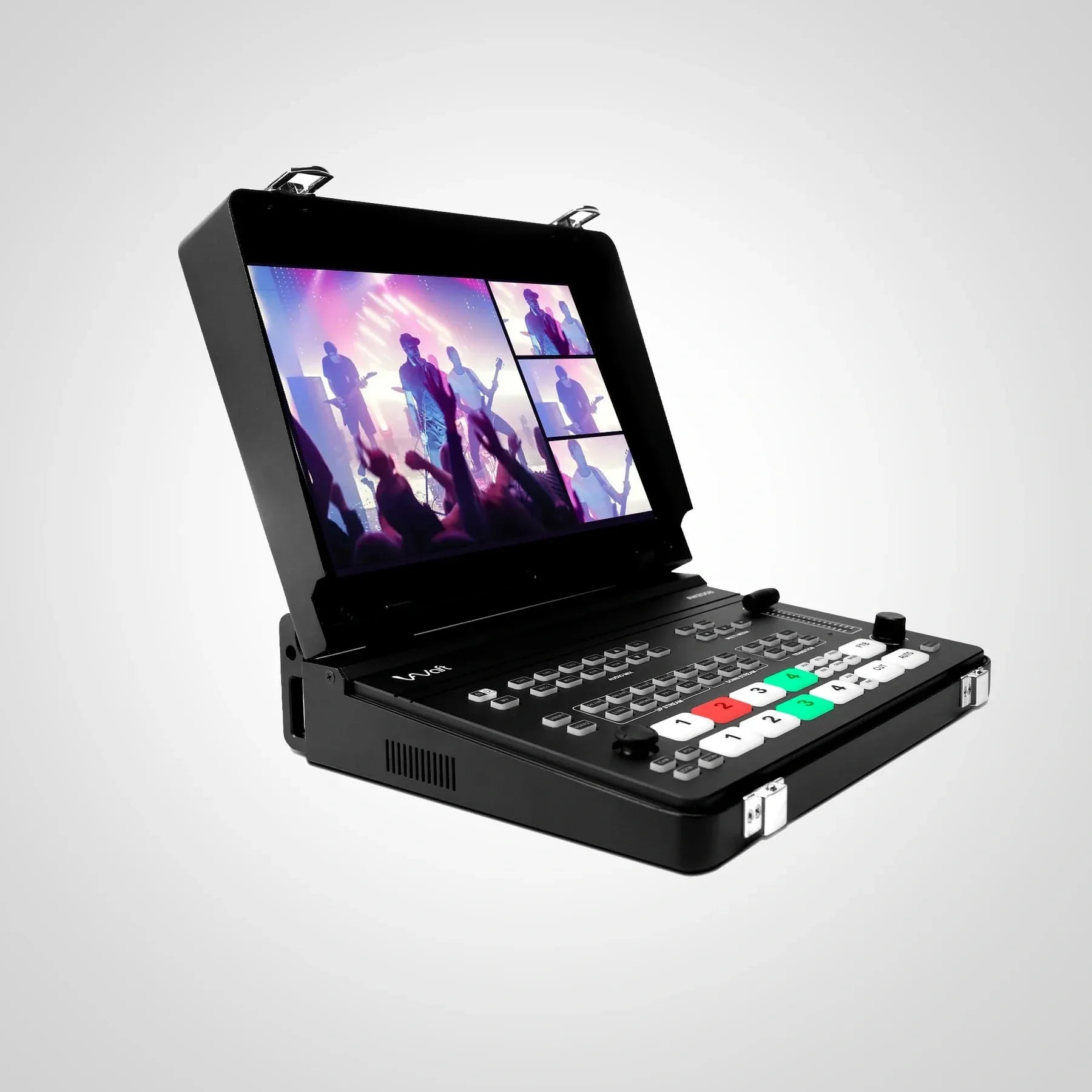

The AIWaft Video Mixer is a high-performance 4K HDMI video switcher designed for professional live streaming, broadcasting, and multi-camera production. With 4 HDMI inputs, PTZ camera control, and USB & SD recording, it offers seamless real-time switching, effects, and transitions for dynamic video production. The AIWaft Video Mixer supports up to 8 layers, custom logos, and advanced keying features such as chroma key and picture-in-picture (PIP). Equipped with LAN streaming, RTMP support, and UVC output, this video mixer ensures a smooth, high-quality streaming experience for content creators, broadcasters, and live event producers.
| Brand | AIWaft |
|---|---|
| Manufacturer | AIWaft |
| Model Number HDMI | AW2008 |
| Model Number SDI | Aw2009 |
| Size | 10 Inch |

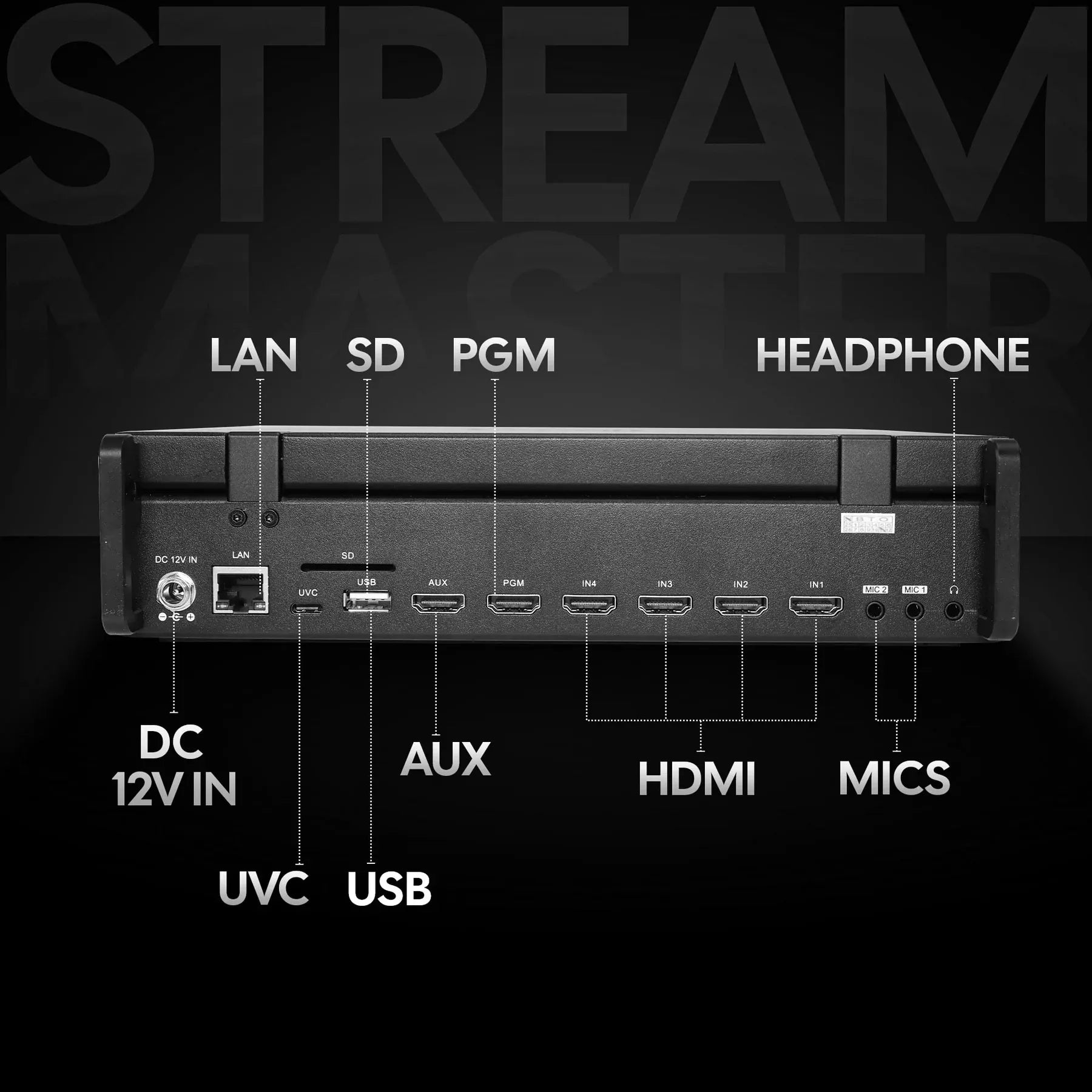

| Video Input | HDMI 2.0*2+HDMI-2 |
| Video Output | HDMI PGM 1+Aux*1, USB3.11(Type-C) LAN1, |
| Audio Input | Line (3.5mm stereo) *2 |
| Audio Output | Line (3.5mm stereo) *1 |
| Control Interface | LAN*1 For Network Livestream, PTZ Camera Control, Software Control |
| UVC Output | USB-A*1 |
| USB | For Video Recording Storage, Camera, Tally, LOGO, Firmware Upgrades, etc. |
| SD Card | Video Recording Storage |
| Transition | T-Bar/AUTO/CUT |
| Effects | WIPE(Multiple Patterns)/MIX/DIP/Transition Preview/BKGD /STILL (Freeze)/MUTE/FTB |
| Live Mode | Portrait Screen & Landscape |
| Key |
|
| Layers | PGM Supports Up To 8 Layers |
| Audio | HDMI*4, Multimedia & 2 Microphone/Analog Audio Inputs |
| PTZ | VISCA IP Protocol |
| Media library | Preset A Variety Of Background Images, Logos, And Videos |
| Stream | H.264/Support Recording And RTMPs Support Recording Streaming Bit Rate Separation |
| LOGO | Max 940*540 Pixel, Support Alpha Transparent Channel (PNG Image) |
| IP Control | WB Server( Support Phone, PC, IPad) |
| PGM Output | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i50/1080i60 |
| Color Space | RGB/YUV |
| UVC Output | USB3.1/Max YUV2 1080p60 |
| SDI Input | NO |
| HDMI Input | 2160p60/59.94/50/30/29.97/25/24 /23.98(HDMI2.0), 1080p 60/59.94/50/30/29.97/25/24 /23.98 1080i50/1080i60 |
| Voltage | 7~24V |
| Power Dissipation | <20W |
| Size (LDW) | 250*206*63MM |
| Weight | 2.0kG |

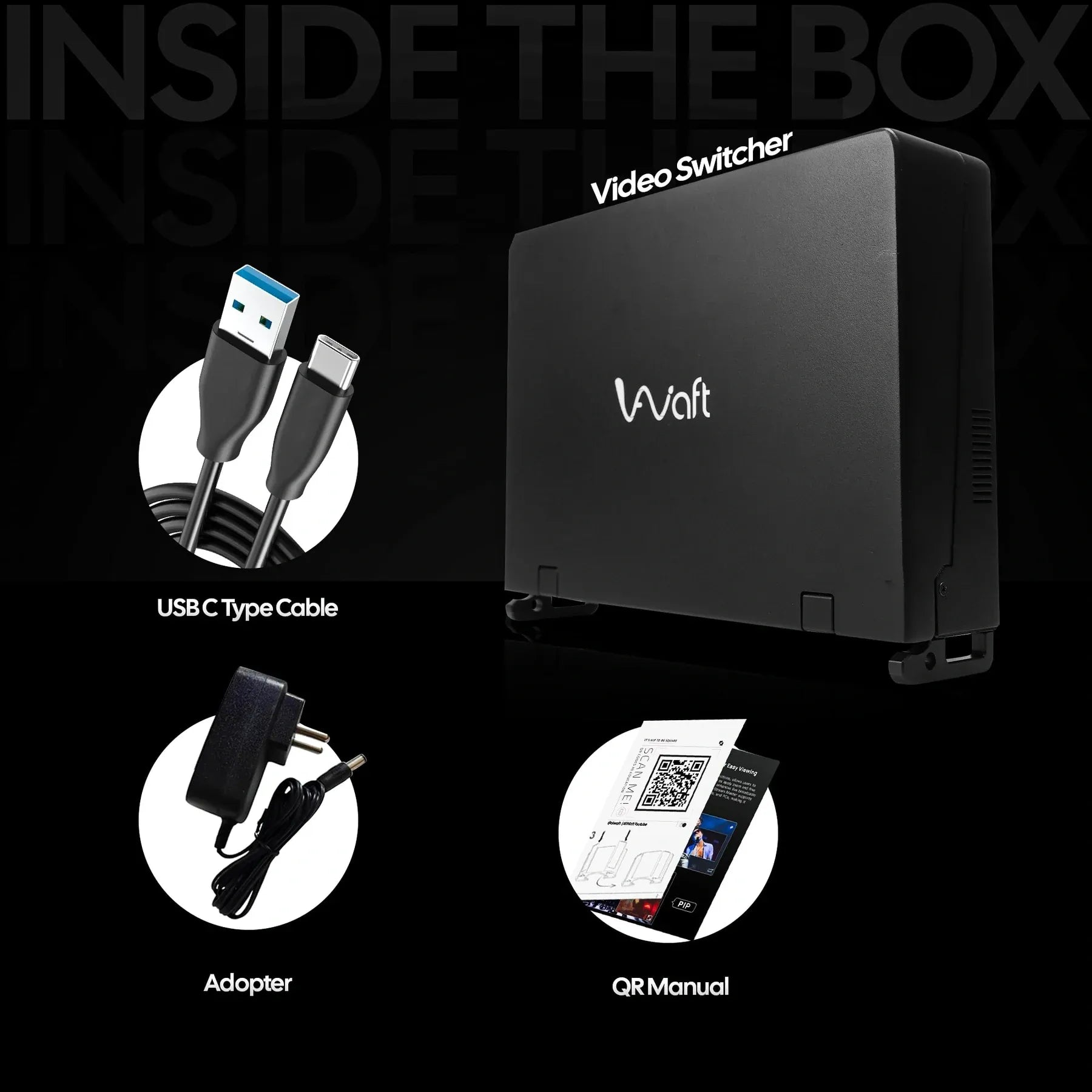

| Accessories | (12V 2A)×1 USB3.0 Cable*1(A to A) |
