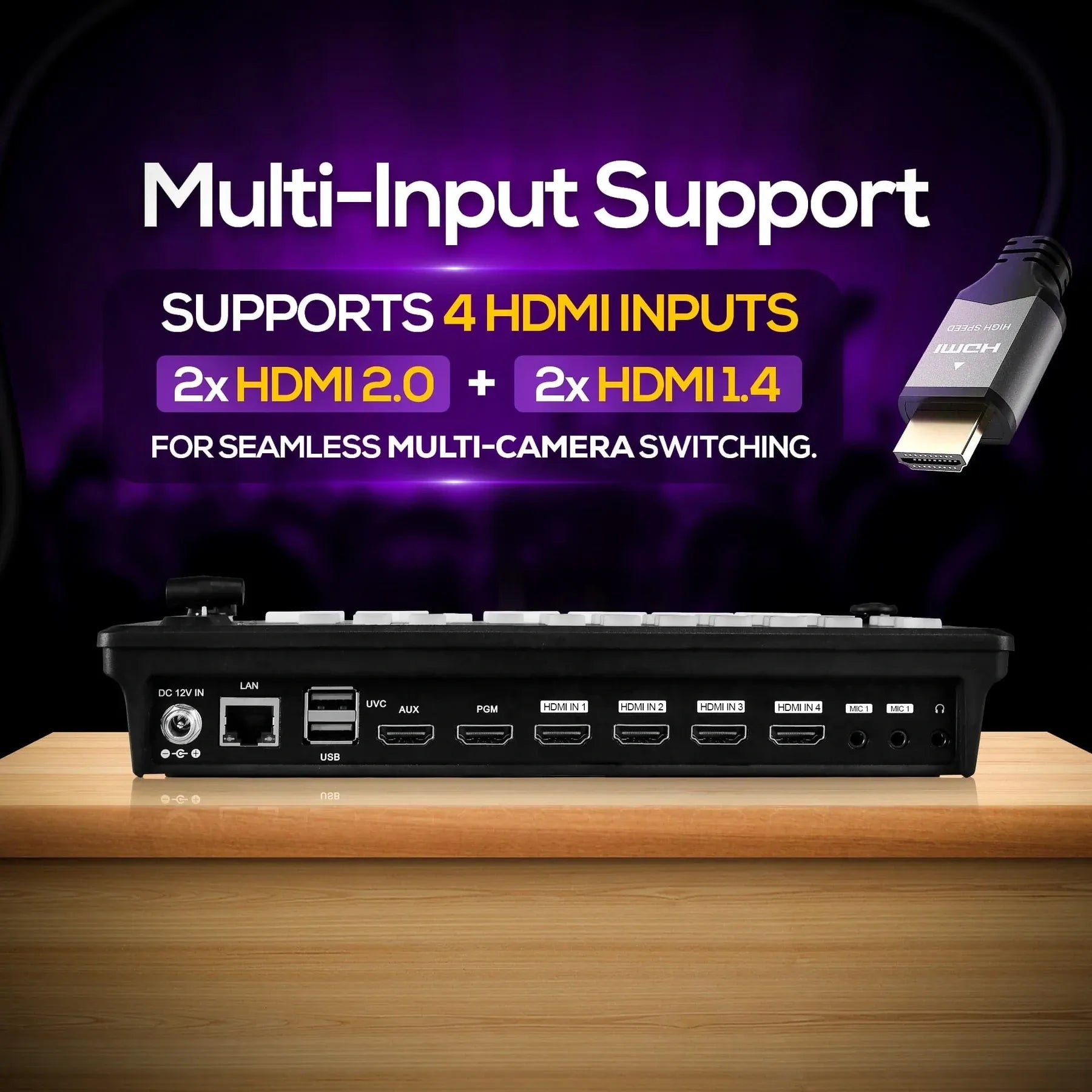

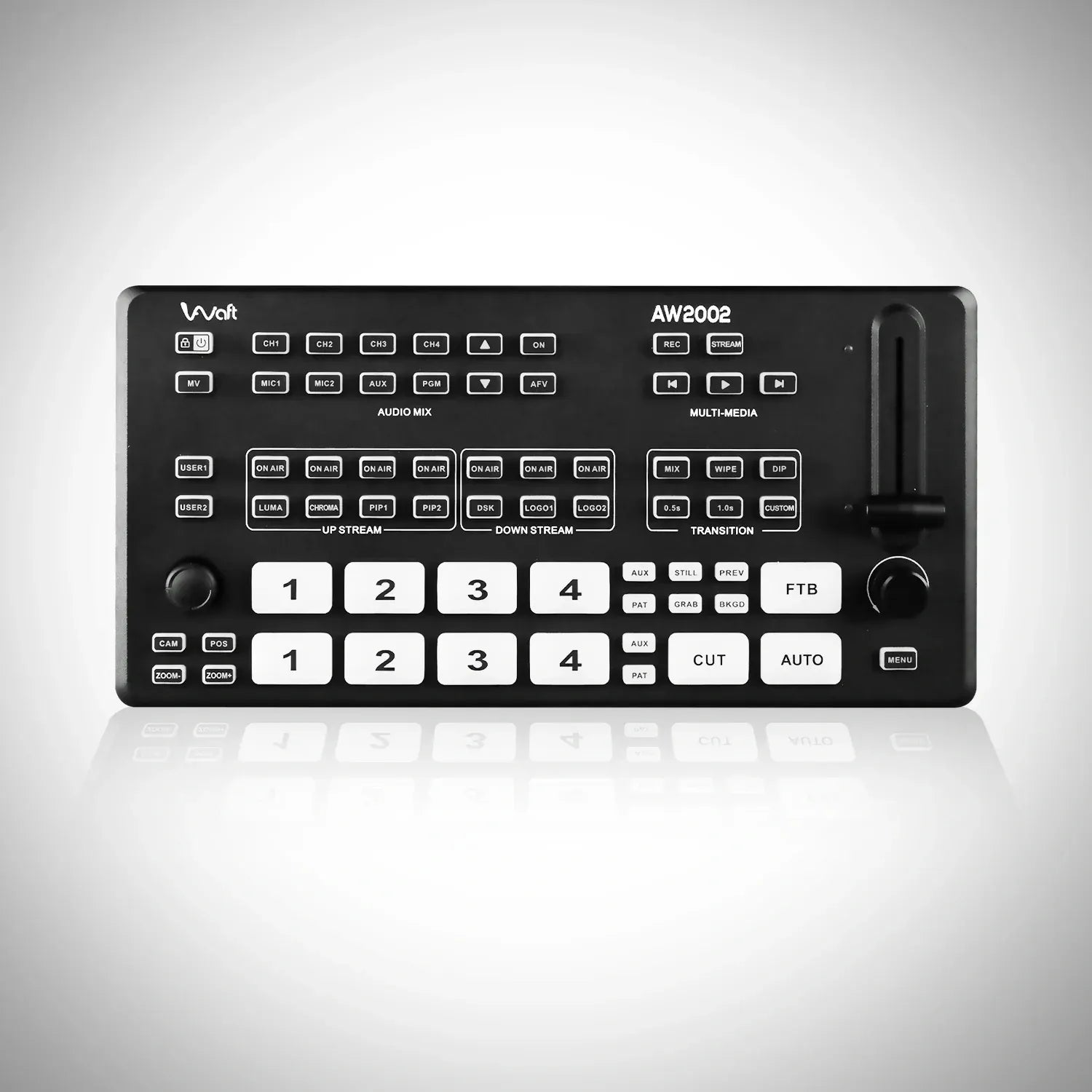

The AIWaft HDMI Video Switcher is a high-performance multi-input video mixer designed for seamless live streaming, broadcasting, and multi-camera production. With 4 HDMI inputs (2x HDMI 2.0 + 2x HDMI 1.4) and versatile USB & SD recording, it offers professional-grade PTZ camera control, real-time transitions, chroma/luma keying, and multi-layer PGM support. Whether you're running a live event, online show, or studio production, this compact yet powerful switcher ensures smooth operation with high-quality output.
| Special Effects | WIPE(various patterns)/MIX/DIP/Transition preview/BKGD/Freeze/MUTE/FTB |
|---|---|
| Layout | Support Horizontal/vertical screen |
| Key | Upstream key: Luma Keyx1/Chroma Keyx1/PIP×2/POP Downstream key: DSK×1/LOGO×2 |
| layers | PGM supports up to 8 layers |
| Audio | HDMIX4, multimedia and 2 Way Microphone/ Stereo input: audio delay: 0-1s |
| PTZ | VISCA IP Protocol |
| Media Library | support preset multi background picture, LOGO and video stream |
| Streaming | H.264 encoding, supports recording and multi-channel network streaming, supports recording and streaming bit rate separation |
| TV Station Logo | Any size (up to 940x540) and position, support alpha transparent channel (PNG image) |
| HDMI Input Support | 2160p 60/59.94/50/30/29.97/25/24/23.98 (HDMI2.0 interface), 1080p 60/59.94/50/30/29.97/25/24/23.98 1080/50/1080160" |
| HDMI PGM Output | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080/50/1080160 |
| HDMI Colour Space | RGB/YUV |
| UVC Output | USB3.1 lossless output, maximum support YUV2 1080p60 |
| Data Stream Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 |
| Voltage | 7-24V |

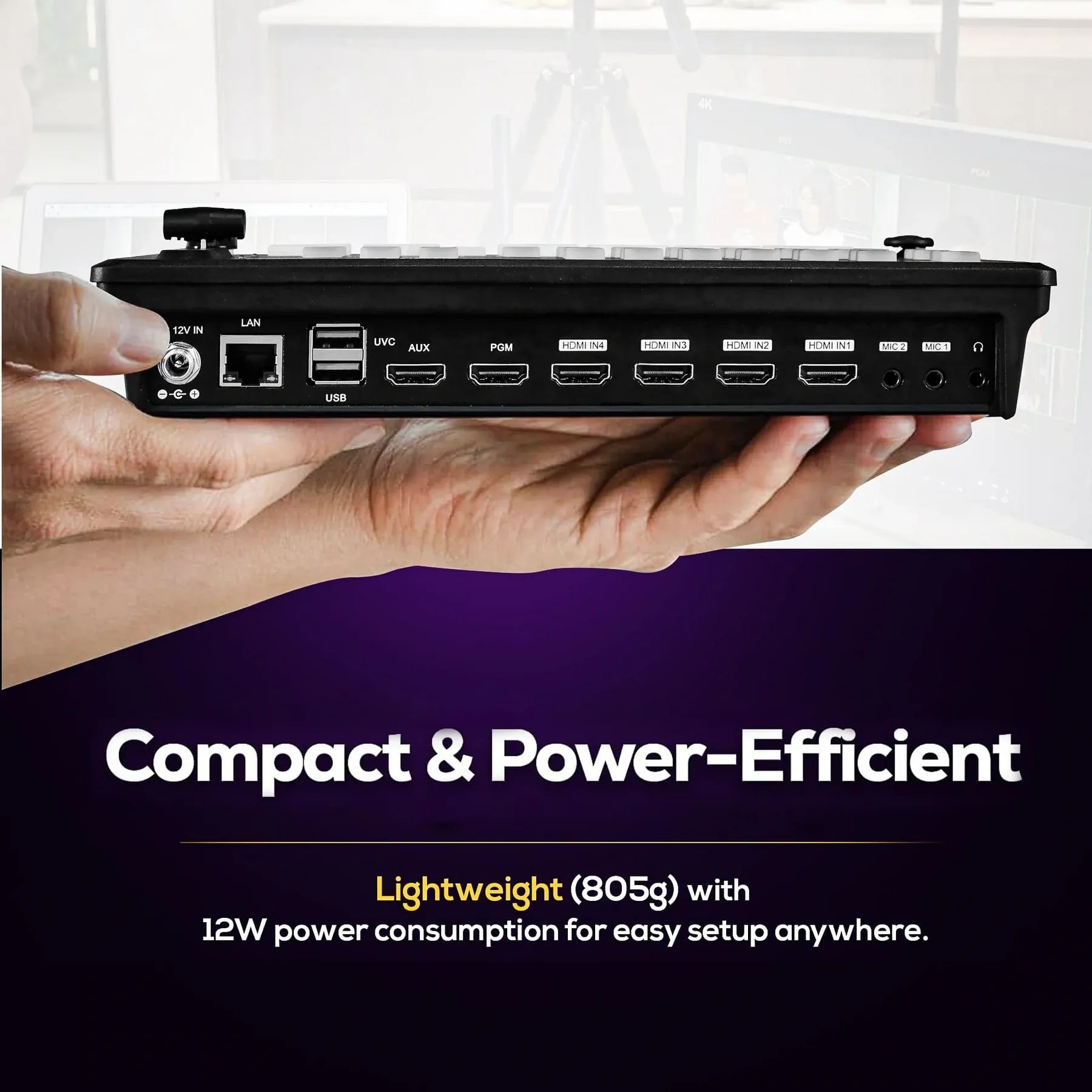

| Power Consumption | 12W |
| Size | 244×120×50mm |
| Weight | 805g |
| Temperature | Working temperature: 0C-50C Storage temperature: -30°C-700 |
| Accessories | Adapter (12V 2A) x1; USB3.0 cable (A to A) |
