AIWaft Video Mixer: The Ultimate Budget-Friendly Multi-Camera & Live Streaming Solution
Are you a creator, educator, or live streamer looking to elevate your video production quality without breaking the bank? One of the biggest hurdles when setting up a professional multi-camera studio or podcast space is dealing with expensive and overly complex video switchers.
If you're searching for a budget-friendly video mixer that brings everything together mic connectivity, multi-camera inputs, and seamless PTZ camera operation the AIWaft Video Mixer is the all-in-one device you've been waiting for.
Here is a comprehensive breakdown of how this compact powerhouse can transform your studio setup.
What is the AIWaft Video Mixer?

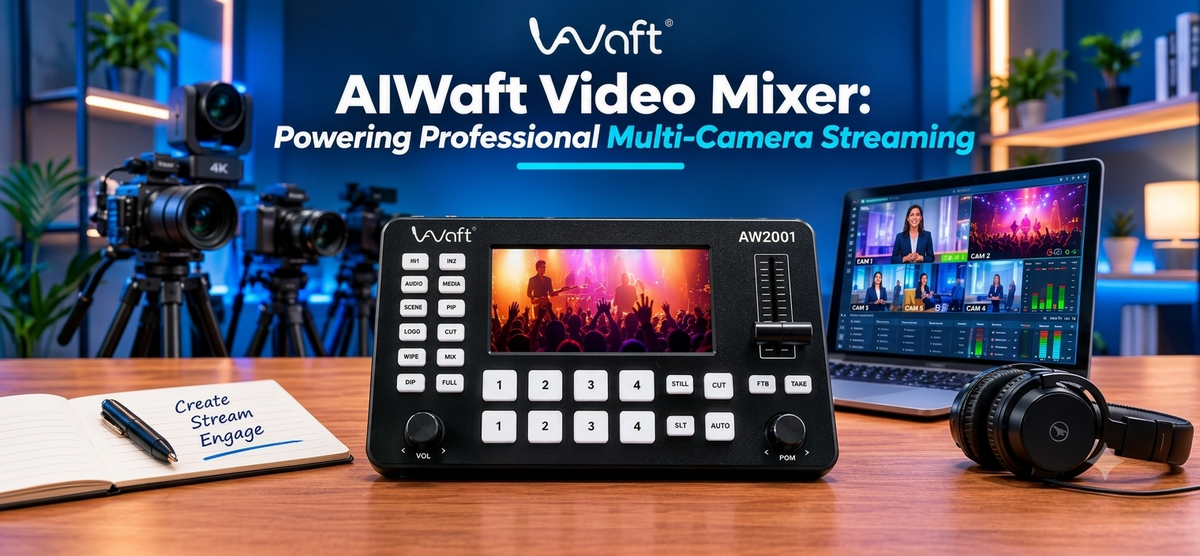

The AI Waft Video Mixer is a palm-sized, lightweight (just 805g) hardware switcher that packs the features of high-end, expensive video mixers into a portable form factor.
Inside the Box:
- AIWaft Video Mixer Unit
- DC 12V Power Adapter
- User Guide & Documentation
Featuring a solid build and an integrated front display, it lets you monitor live camera feeds, check settings, and track audio levels in real time without needing an extra monitor.
Ports & Interface Breakdown
Designed for maximum versatility, the AI Waft Video Mixer offers an array of input and output options:
- Power Connection: 12V DC input with an ultra-low 12W power consumption.
- 4x HDMI Inputs: Connect up to four video sources, including DSLRs, camcorders, or PTZ cameras.
- HDMI Outputs (PGM 1 & PGM 2): Send clean program feeds directly to external monitors or capture cards for software like OBS Studio.
- LAN Port (Visca IP Protocol): Connect to a PoE switch to power and control PTZ camera movement directly over the network protocol.
- USB 3.1 & SD Card Slots: Record full HD and 4K video feeds directly to a flash drive or memory card without needing an external PC recorder.
- Audio Interfacing: Dual 3.5mm microphone inputs for podcasters and a dedicated headphone jack for real-time audio monitoring.
Key Technical Specifications
- Input Channels:5-Channel (4 HDMI Inputs + 1 Media Input)
- Video Resolution:Up to 4K & Full HD (2160p60 / 1080p60)
- Direct Recording: USB 3.1 Drive & SD Card Support (H.264 Encoding)
- Camera Control: VISCA IP Protocol for PTZ Cameras
- Transitions & Effects: WIPE, MIX, DIP, PIP, DSK, Custom Logo Overlay
- Audio Control: HDMI, Mic, and Stereo Inputs with Audio Delay Tuning
-
Dimensions & Weight:244 × 120 × 50 mm | 805 Grams
8-Step Setup Guide: Setting Up Your Multi-Camera Studio
Follow these 8 simple steps to get your multi-camera live stream or recording setup running in minutes:
- Power Up: Plug the DC 12V power adapter into the back panel and turn on the mixer.
- Connect Video Sources: Hook up your cameras (DSLRs, camcorders, or PTZ units) into HDMI Inputs 1 through 4.
- Configure Network PTZ Control: Connect your PTZ cameras via the LAN port and a PoE switch to enable joystick and button control on the switcher.
- Plug In Microphones: Insert your microphones into the 3.5mm audio ports and plug your headphones into the monitoring jack to verify sound levels.
- Insert Storage Media: Insert a USB 3.1 flash drive or SD card into the side slot for onboard recording.
- Connect Output to PC/OBS: Connect the HDMI Out to a capture card linked to your laptop or PC running OBS Studio.
- Set Up Transitions & Graphics: Use the front control panel to configure PIP (Picture-in-Picture), DSK, logos, and transition effects.
-
Start Recording & Streaming: Press the dedicated REC button to record straight to your drive, or hit STREAM to go live on YouTube, Facebook, or Twitch!
Practical Studio Performance
During a live studio shoot, the AI Waft switcher streamlines your entire workflow without requiring an extra operator:
- Seamless Camera Switching: Change camera angles instantly with dedicated 1, 2, 3, 4 front-panel keys.
- Direct PTZ Manipulation: Pan, tilt, zoom (PTZ), and adjust brightness on connected cameras right from your desk chair.
- OBS Integration: Route your mixed feed directly into OBS Studio for gaming streams, virtual classrooms, or complex scenes.
-
Instant Footage Access: Once shooting finishes, stop recording, eject the USB drive, and plug it directly into your editing computer; crisp video and clear synced audio are ready to edit immediately.
Final Thoughts
The AIWaft Video Mixer eliminates the need for bulky external audio interfaces and complex multi-device routing. Whether you are running an educational setup, shooting podcasts, or streaming live events, it delivers a professional, all-in-one studio workflow at a fraction of the cost. You can grab yours directly via official distributors like Edusquadz. in or order through Amazon.
